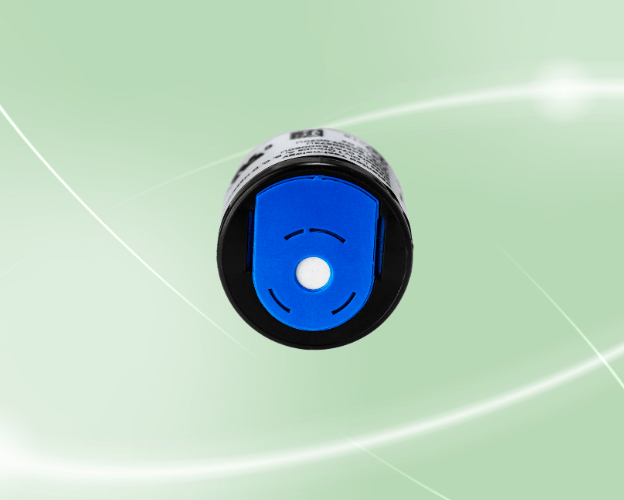

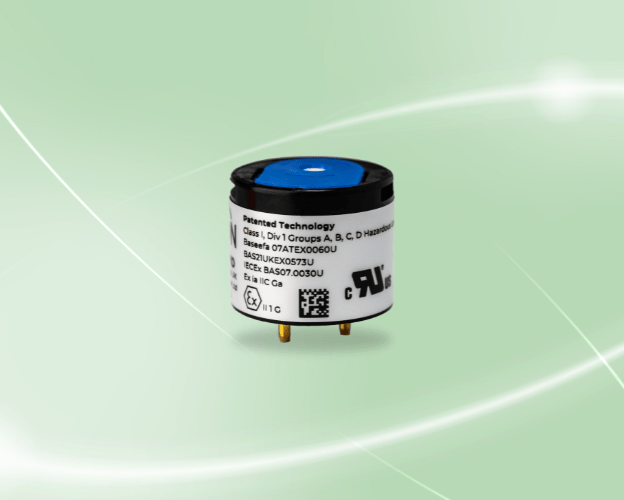

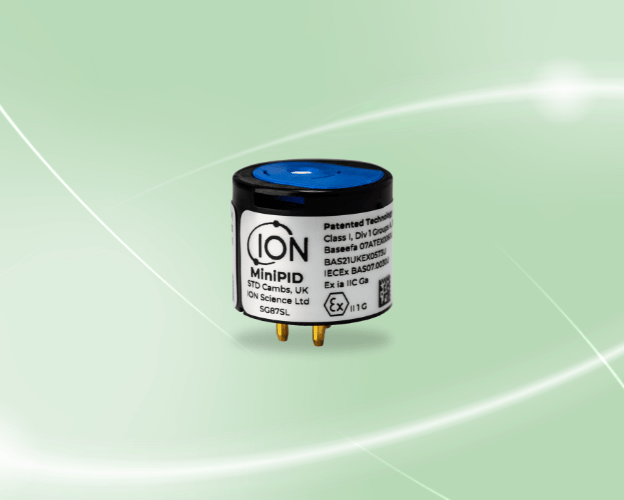

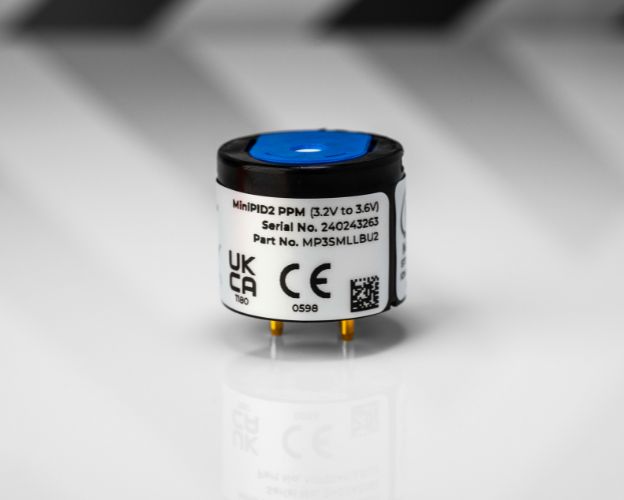

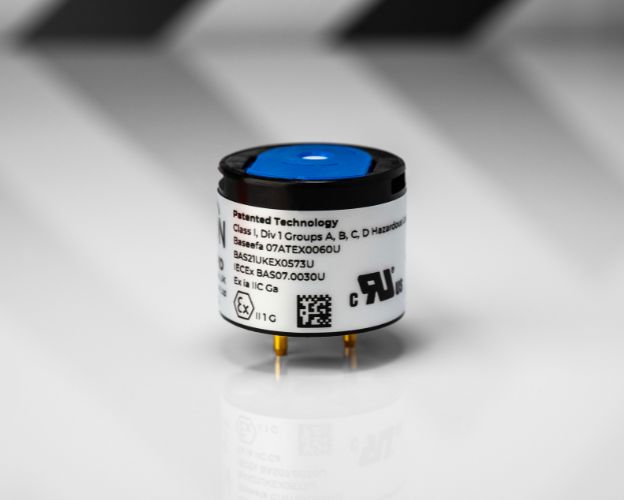

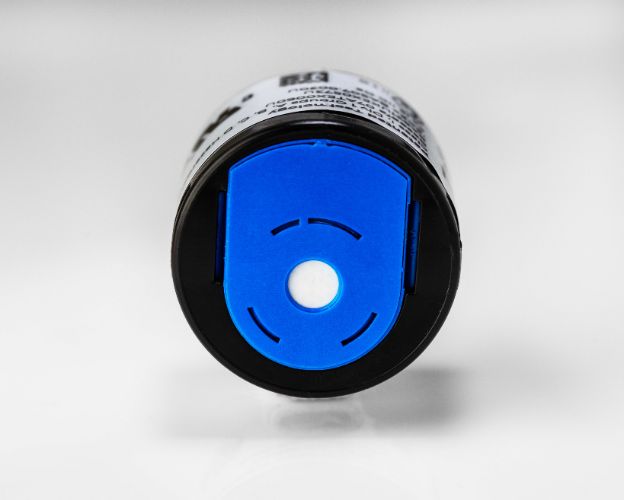

PPM Gas Sensor

OEM gas sensor with state of the art sensing technology.

PID

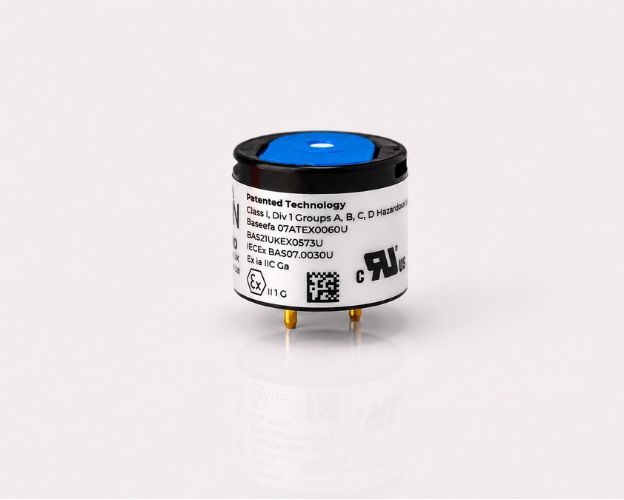

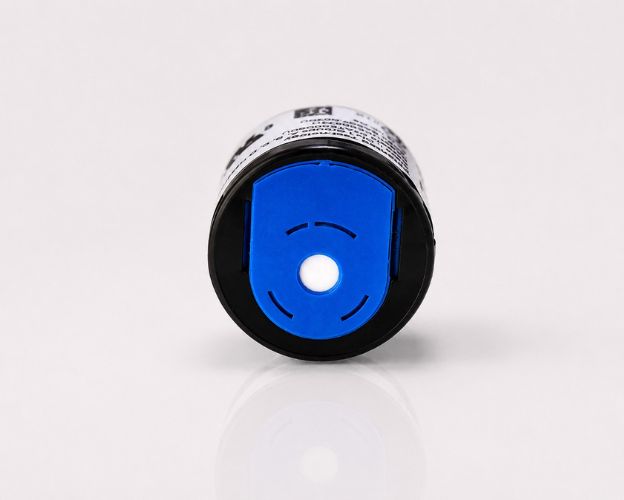

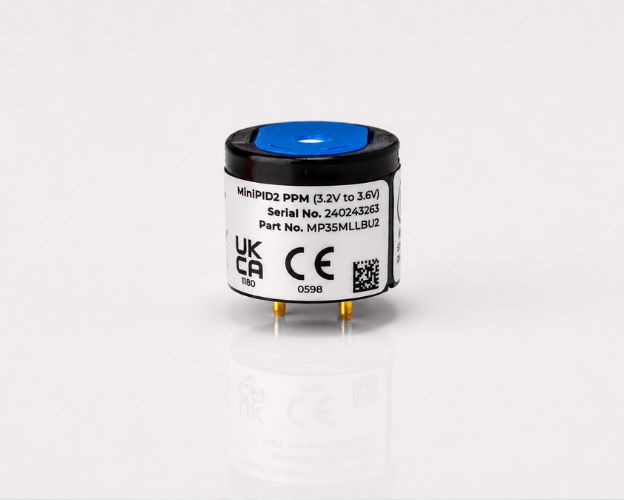

Our MiniPID 2 PPM VOC Gas Sensor is designed for detecting VOCs over the widest dynamic range on the market without compromising performance. It is also the only PID sensor with a lamp out diagnostic.

The MiniPID 2 PPM VOC Gas Sensor – MiniPID 2 is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.

The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The MiniPID 2 PPM VOC Gas Sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.

Key Features

  • Humidity Resistant
  • 10,000 Hours Continuous Lamp Life
  • Anti-contamination Design
  • 10.6 eV Lamp
  • Removable, Pneumatically Sealed Sensing Electrode Stack
  • Series 4 / A
  • 12-Month Warranty (Excluding Electrode Stack)
  • Expected Life > 5 Years
  • Manufactured in UK

Why use the PPM Sensor?

Manufactured In The UK For The Global Market

Expected Life of 5 Years

Humidity Resistance

10,000 Hours Continuous Lamp Life

Technical Specifications

Electrode Stack Colour Blue
Minimum Detection Limit 100 ppb
Range 0->4000 ppm
T90 Response Time (Seconds) <3
Sensitivity >0.65 mV/ppm @ 100 ppm
Lamp Energy 10.6 eV

Approvals

Europe Certification ATEX
North America Certification UL
Worldwide Certification IECEx
Patents US 7,046,012 EC 1474681

Product Compare

Reset
Electrode Stack Colour
Minimum Detection Limit
Range
T90 Response Time (Seconds)
Sensitivity
Lamp Energy
Hide
MiniPID 2 PPM WR
MiniPID 2 PPM WR
Blue
500 ppb
>10,000 ppm
<3
>0.4 mV / ppm @ 100ppm
10.6 eV
Hide

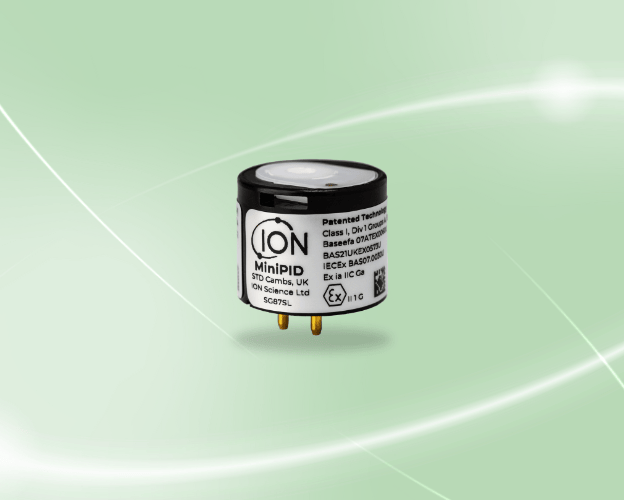

10.0 eV Gas Sensor
10.0 eV Gas Sensor
White + gold spot
5 ppb
0->100 ppm
<8
>15 mV/ppm
10.0 eV
Hide

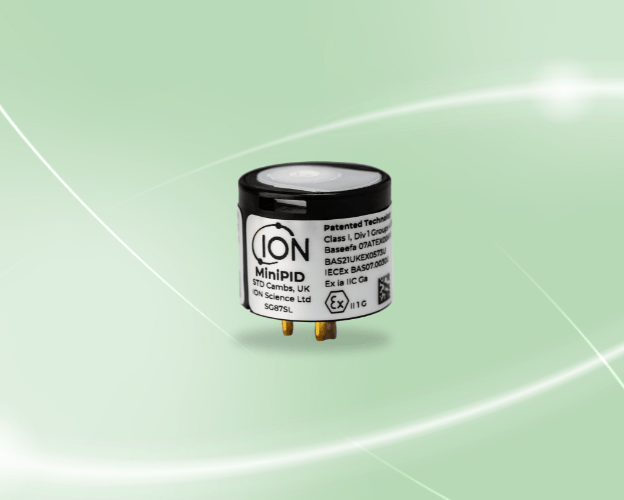

11.7 eV Gas Sensor
11.7 eV Gas Sensor
White
100 ppb
>100 ppm
<8
>1 mV/ppm
11.7 eV
Hide
High Sensitivity Gas Sensor
High Sensitivity Gas Sensor
Red
0.5 ppb
0 – 3 ppm
<12
>600 mV/ppm
10.6 eV
Hide
PPB Gas Sensor
PPB Gas Sensor
White
1 ppb
>40 ppm
<8
>30mV/ppm
10.6 eV
Hide
PPB WR Gas Sensor
PPB WR Gas Sensor
White
20 ppb
>200 ppm
<8
>5mV/ppm
10.6 eV
Hide
PPB XF Gas Sensor
PPB XF Gas Sensor
White + Filter
1 ppb
>40 ppm
<12s
>30 mV / ppm
10.6 eV
Hide
PPM Gas Sensor
PPM Gas Sensor
Blue
100 ppb
0->4000 ppm
<3
>0.65 mV/ppm @ 100 ppm
10.6 eV

Complete the form below to speak to a dedicated sensor specialist.

FAQs

High percentage of humidity effects the performance and can result in False results. ION SENSE PIDS are made with patent Fence Electrode Technology which minimises the effect of humidity on the performance of the sensor.

ION SENSE PIDS are certified to ATEX, IECEX and UL standards.

We use Isobutylene for calibration of our PIDS.  The RF relates the sensitivity of PID to a volatile to the sensitivity to the standard calibration gas isobutylene.
