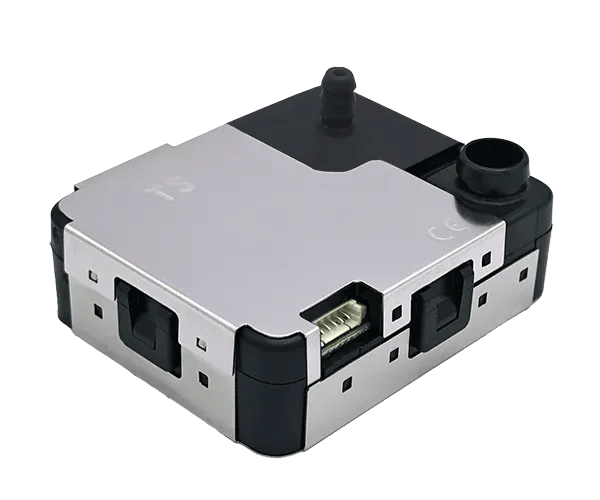

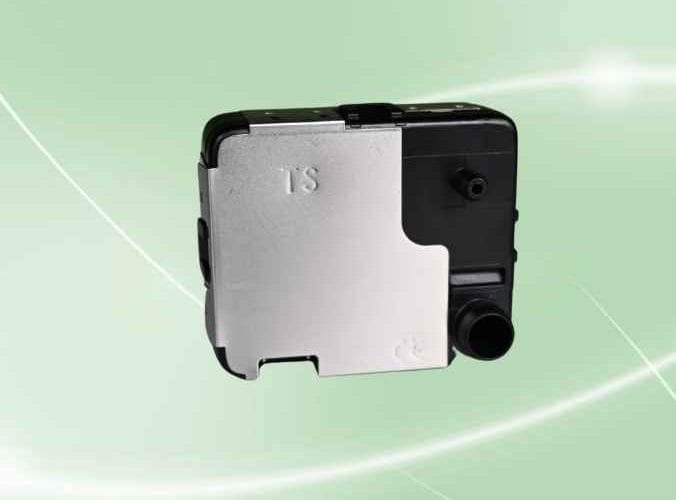

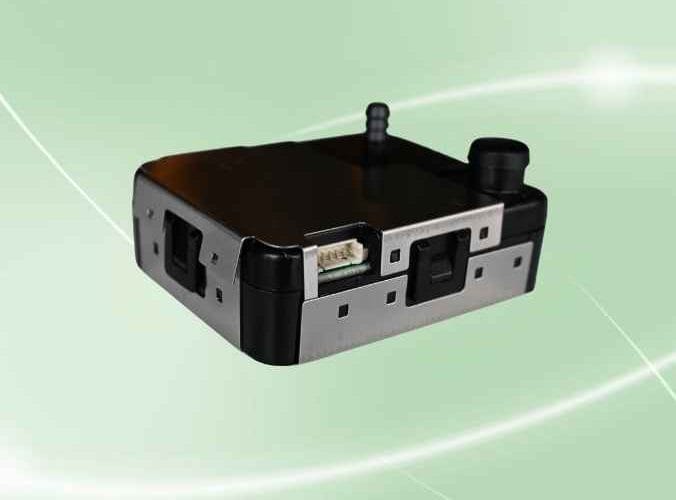

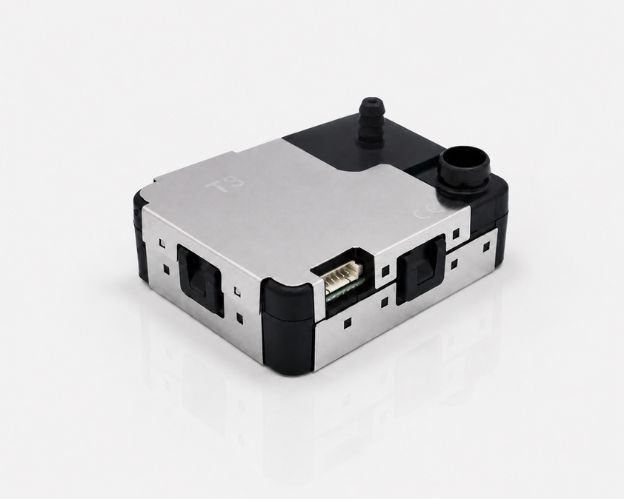

NextPM Advanced
Reliable particulate matter (PM) monitoring in demanding environments.
Designed specifically for air quality measurement in ventilation ducts and HVAC systems, the NextPM Advanced replaces the internal fan with an end piece that connects to an external pump. This design ensures stable operation under significant pressure differences, delivering reliable particulate matter (PM) monitoring in demanding HVAC environments. The sensor provides real-time PM1, PM2.5, PM10 and TSP1 data in both µg/m³ and pcs/L.
Key Features
- External pump
- Extended operational range
- Real time PM1, PM2.5 and PM10 + TSP
- 5 channel in pcs/L
- Airflow 1 L/mn
- Lifetime up to 10 years
- Communication UART / Modbus (RS485)
- Pressure loss compliant
Why use the NextPM Advanced Sensor?
Downloads
Technical Specifications
| Technology | Optical |
| Targeted pollutants | Particulate Matter |
|
Outputs Temperature Relative humidity |
PM1 μg/m³ & pcs/L PM2.5 μg/m³ & pcs/L PM10 μg/m³ & pcs/L TSP1 μg/m³ 2 °C 2% |
| Airflow | 1.2 L/mm |
| Size | Annex 1 mm / inches |
| Lifetime | >10,000 hours |
| Particle size detection range | 0.3—10 μm diameter |
| Detection efficiency with 0.3 μm diameter particles | >50% |
|
Concentration detection range / PM10 – PM2.5 – PM1 |
0—10,000 μg/m³ (Arizona dust A1 equivalent) |
| Concentration detection range / TSP | 0—40,000 μg/m³ (Arizona dust A1 equivalent) |
| Detection limit | <1 μg/m³ (Arizona dust A1 equivalent) |
| Linearity error | <5% |
| Repeatability error | <3% |
| Refresh rate | 1 / 10 / 60 seconds |
| Warm-up time | 10 seconds |
|
Temperature influence 0—30 °C -20—0 °C 30—70 °C |
0% / °C <+1.0% / °C <-0.8% / °C |
| Power supply | 5.0 VDC |
| Power consumption in operation |
<50 mA 270 mA (maximum) |
| Power consumption in sleep mode | <20 mA |
| UART / Modbus (RS485) | Download NextPM User Guide for more information |
|
Operating conditions Temperature Humidity Pressure |
-20—70 °C 253—343 K 0—95 uncondensed (%) 500—1500 hPa |
|
Storage conditions Temperature Humidity Pressure |
-20—70 °C 253—343 K 0—95 uncondensed (%) 500—1500 hPa |
| Certifications | CE and RoHS compliant |
| Dimensions and weight |
L 62 mm x W 52 mm x H 26.6 mm / 45 g L 2.4 / W 2.07 / H 1.02 inches / 1.59 Oz |
Want to learn more?
Complete the form below to speak with a dedicated sensor specialist.
FAQs
The NextPM Advanced is specifically engineered for HVAC and ventilation duct environments where pressure differences can be significant. By connecting to an external pump rather than relying on an internal fan, the sensor maintains stable and accurate operation even under challenging pressure conditions. This design ensures consistent airflow and reliable PM monitoring in demanding HVAC applications.
Yes. The NextPM Advanced provides comprehensive particulate matter data in two formats: mass concentration (µg/m³) for PM1, PM2.5, and PM10, and particle count (pcs/L) across five size channels (0.3-0.5 µm, 0.5-1 µm, 1-2.5 µm, 2.5-5 µm, and 5-10 µm). This dual output capability allows for flexible data analysis depending on your specific air quality monitoring requirements.
With a mean time to failure (MTTF) of up to 10 years, the NextPM Advanced is built for reliable, long-term operation in HVAC systems. It features a fast 10-second warm-up time, operates across a wide temperature range (-20°C—70°C), and has minimal temperature influence on readings. The sensor also offers low power consumption in sleep mode (<5 mA), making it ideal for continuous monitoring installations.
The NextPM Advanced offers flexible communication options including UART, Modbus, and I2C protocols. This versatility ensures seamless integration into existing building management systems (BMS) and HVAC control platforms, allowing you to incorporate real-time particulate matter data into your facility’s overall air quality management strategy. The sensor’s fast refresh rate (adjustable to 1, 10, or 60 seconds) provides timely data for automated ventilation control responses.
The NextPM Advanced excels at detecting low-level particulate matter with a detection limit of less than 1 µg/m³. This high sensitivity is crucial for maintaining healthy indoor air quality in HVAC systems, where early detection of particle accumulation can trigger ventilation adjustments before air quality degrades. The sensor also maintains excellent linearity (<5% error) and repeatability (<3% error) across its full measurement range of 0—1000+ µg/m³.
