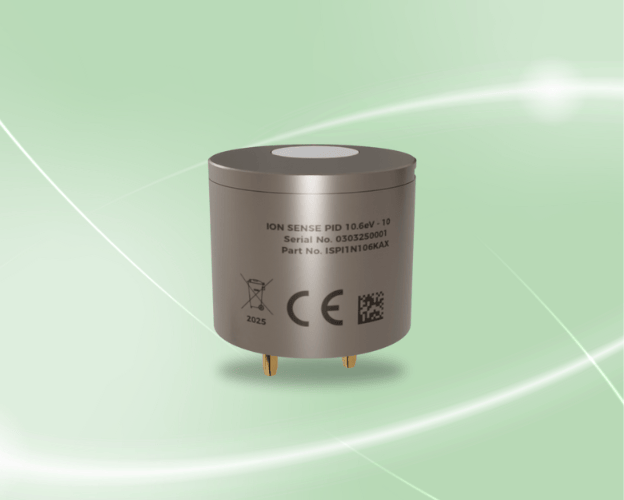

ION SENSE® PID 10.6 eV 3
A New Era in VOC Detection
ION SENSE® PID sets a new industry benchmark in photoionisation detection, delivering unmatched performance, accuracy, and reliability. Designed with cutting-edge technology, this next-generation sensor redefines VOC detection, offering superior sensitivity and long-term stability in even the most challenging environments.
Developed in response to customer feedback, our enhanced sensor technology not only improves air quality monitoring but also reduces maintenance costs and extends sensor life. With the market-leading design and low cost of ownership, ION SENSE® PIDs continue to set the standard for high-performance VOC detection.
With easy installation and low maintenance, the ION SENSE® PID enables effortless integration into existing systems. Additionally, ION SENSE® offers dedicated integration boards for rapid evaluation and streamlined adoption across diverse applications.
Key Features
- 15,000 hour lamp and filter life
- Superior lamp stability
- Exceptional humidity resistance
- Anti-contamination design
- Designed for longevity and stability
- World’s most sensitive PID
- 5 x improved stabilisation time
- Response time reduced by 50%
- Robust EMI protection
- Intelligent diagnostics ensuring operator safety (patent pending)
- Serviceable filter, electrode stack and lamp
- Enhanced pneumatic integration
Why use an ION SENSE® PID?
Downloads
For a copy of the Manual, please get in touch with the Sensors Team at sensors@ionsense.com.
Technical Specifications
| Electrode Stack Colour | Stainless steel |
| Minimum Detection Limit | 0.5 ppb |
| Range | 0 – 3 ppm |
| T90 Response Time (Seconds) | <6s |
| Sensitivity | >600mV/ppm |
| Lamp Energy | 10.6eV |
| Supply Voltage | 3.2V – 5.0V |
| Current | 30 mA continuous, <50 mA transient 10 ms |
| Power Consumption | 3.2V = <100 mW |
| Output Signal | 0 – rail voltage -.15 |
| Temperature Range | -40 to +60°C |
| Relative Humidity Range | 0-99% RH (non-Condensing) |
| Expected Life | >5 years |
| Pressure Range | 800-1200 mBar |
| Lamp Life | >15,000 hours |
| Filter Life | >15,000 hours |
| Warranty | PID Body = 24 months / Lamp = 12 months |
Product Compare
Want to learn more?
Complete the form below to speak to a dedicated sensor specialist.
FAQs
High percentage of humidity effects the performance and can result in False results. ION SENSE® PIDS are made with patent Fence Electrode Technology which minimises the effect of humidity on the performance of the sensor.
Please share serial number with the team and they will revert with the information.
We use Isobutylene for calibration of our PIDS. The RF relates the sensitivity of PID to a volatile to the sensitivity to the standard calibration gas isobutylene.
