High Sensitivity Gas Sensor
OEM gas sensor with state of the art sensing technology.

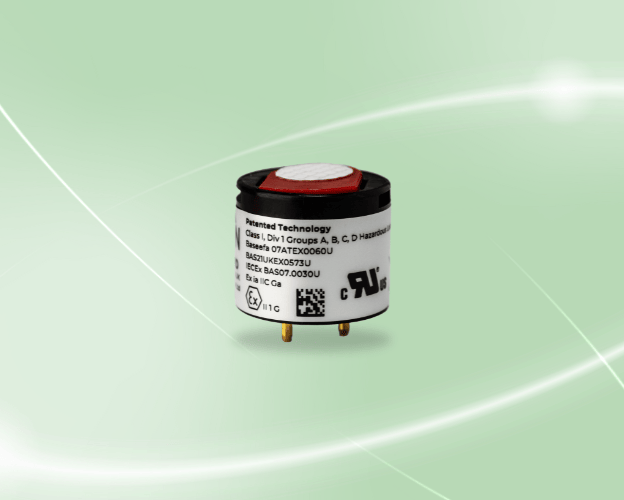

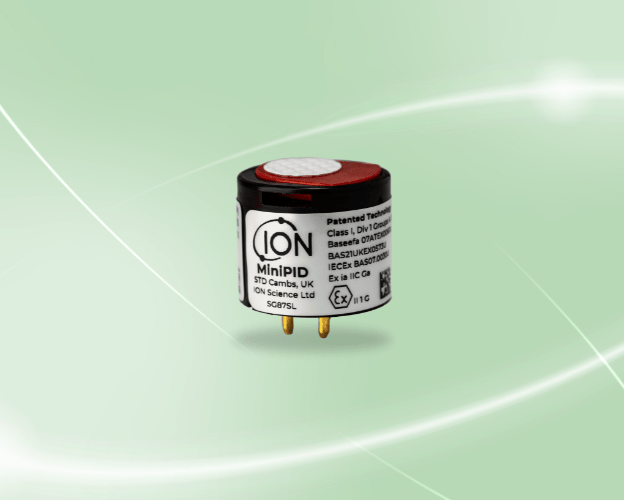

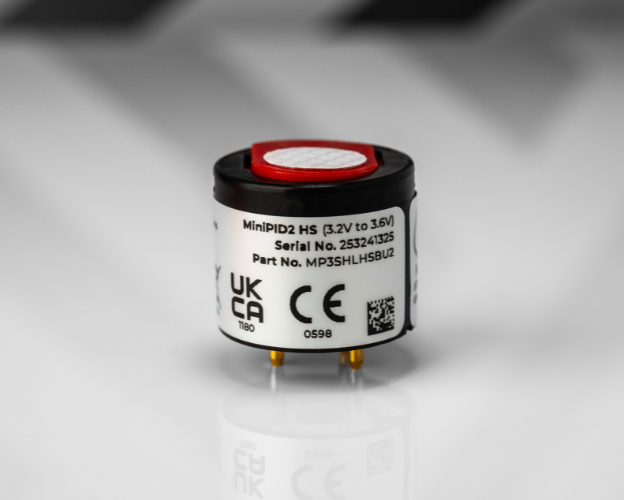

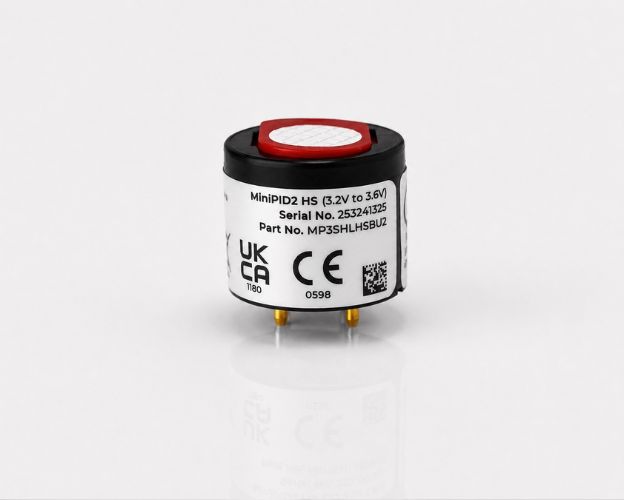

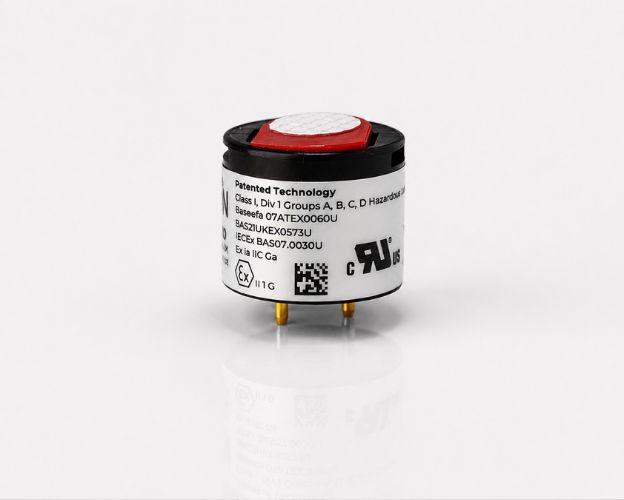

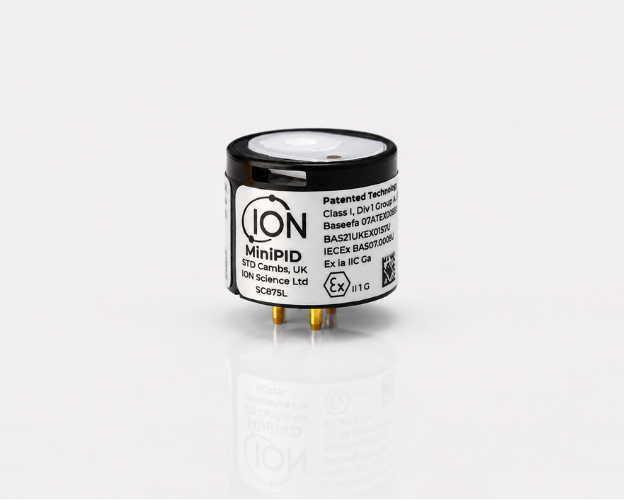

Designed for OEMs, the high sensitivity gas sensor – MiniPID 2 is the latest in the range of PID sensors from ION Science for sub PPB level detection.
The ground-breaking high sensitivity gas sensor is 15 times more sensitive than the existing PPB gas sensor and capable of detecting trace levels of volatile organic compounds (VOCs) over a long period of time making it ideal for indoor air quality monitoring applications.
Features
Delivering a dependable response to thousands of VOCs across many diverse applications, the high sensitivity VOC sensor is a simple plug and play sensor providing a wide detection range of 0.5 ppb up to 3 parts per million (ppm). ION Science’s high sensitivity gas sensor also features a re-designed, pneumatically sealed electrode stack for high sensitivity and a wide detection range.
An innovative self-diagnostic feature indicates whether the electrode stack is contaminated or if the sensor is not operating correctly. The high sensitivity VOC sensor incorporates ION Science’s long-life lamp that offers 10,000 hours continuous operation. Together with exceptional brightness and improved stability, this facilitates reliable detection of less volatile and less readily sensed compounds, over an extended period of time.
Key Features
- Patented humidity resistant technology
- 10,000 hours continuous lamp life
- 10.6 eV lamp
- High sensitivity for sub – ppb level detection
- 12 month warranty (not including stack)
- Sensor lifetime >5 years (excluding lamp and electrode stack)

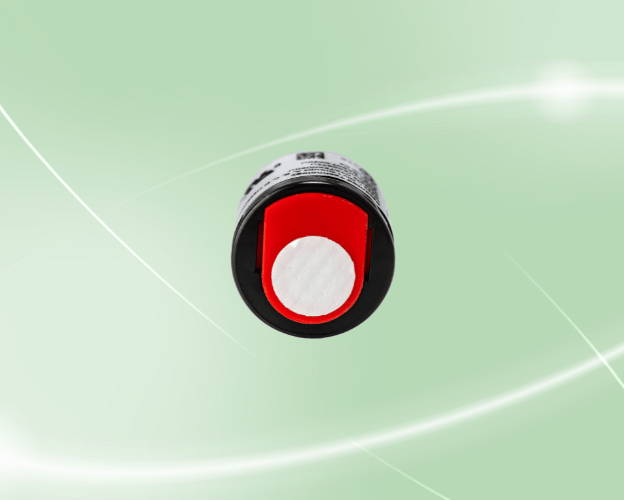

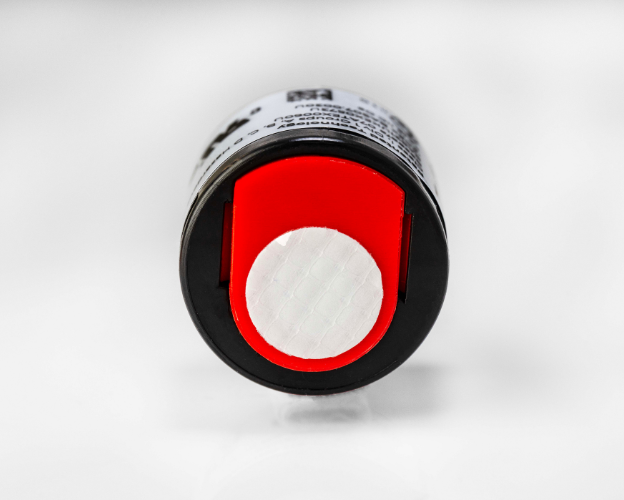

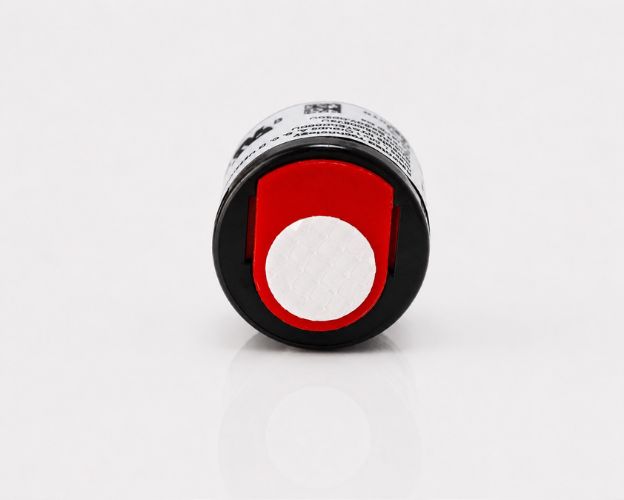

- Removable, pneumatically sealed electrode stack
- Certified intrinsic safety
- Series 4 / A
Why use the High Sensitivity sensor?
Downloads
Technical Specifications
| Electrode Stack Colour | Red |
| Minimum Detection Limit |
0.5 ppb |
| Range |
0 – 3 ppm |
| T90 Response Time (Seconds) |
<12 |
| Sensitivity |
>600 mV/ppm |
| Lamp Energy |
10.6 eV |
| Supply Voltage (using internal regulator) |
3.6 – 18 V (non intrinsically safe 10 – 18 V) |
| Supply Voltage (using a regulated power supply) |
3 – 3.6 V |
| Current |
20 – 32 mA (130 mA for 100 ms at start up) |
| Power Consumption |
100 mW at 3.3 V |
| Output Signal (using internal regulator) |
0 – 3.2 V |
| Output Signal (using a regulated power supply) |
0 to rail voltage – 0.1 V |
| Recommended Operational Temperature Range |
0 – 40 °C |
| Relative Humidity Range |
0 – 99% RH, non-condensing |
| Expected Life |
>5 years |
| Lamp Life |
10,000 hours |
| Warranty |
10.6 eV lamp and MiniPID Body –12 months |
Approvals
| Europe Certification | ATEX |
| North America Certification | UL |
| Worldwide Certification | IECEx |
| Patents | US 7,046,012 EC 1474681 |
Product Compare
Want to learn more?
Complete the form below to speak with a dedicated sensor specialist.
FAQs
| High percentage of humidity effects the performance and can result in False results. ION SENSE PIDS are made with patent Fence Electrode Technology which minimises the effect of humidity on the performance of the sensor. |
We use Isobutylene for calibration of our PIDS. The RF relates the sensitivity of PID to a volatile to the sensitivity to the standard calibration gas isobutylene.
ION SENSE PIDS are certified to ATEX, IECEX and UL standards.?
