Efficient way to test and integrate the ION Science photoionisation detection sensors into any application.

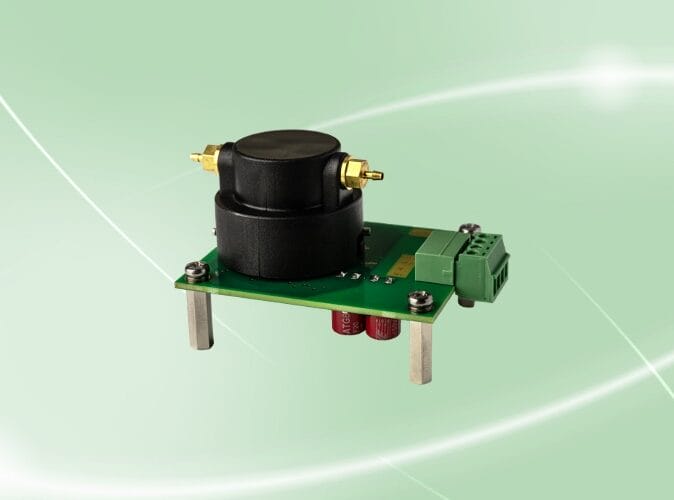

The Sensor Development Kit (SDK) is comprised of two printed circuit boards (PCBs), a sensor PCB and integration PCB with a gas delivery hood.
Sensor PCB – The sensor board acts as a sensor breakout board enabling users to inset any MiniPID photoionisation detection sensors and perform basic sensor testing. It can also be connected to the integration board making it really simple to add PID sensors to any application.
Integration PCB – The integration board provides signal processing, data logging and communications with industry standard 4-20 mA and Modbus outputs. It can be configured to switch a relay on at a given VOC concentration. The Integration board is configured with a simple PC application.
Features
- 4- 20 mA input and output
- Modbus communication
- Data logging
- 12 month warranty
- Simple sensor calibration
- MS window compatible configuration software
- Bayonet locking gas hood
- Easy sample delivery
Technical Specifications
| Dimensions in mm |
50 (W) x 62 (D) x 4 (H) |
| Output |
Analogue 0 to rail voltage |
| Input voltage | 5 Vdc ± 0.5 V |
| Working temperature | – 20 °C to + 60 °C |
| Humidity resistant | 0 to 99% RH non condensing |
| Warranty period |
12 months |
| Dimensions in mm |
99 (W) x 85 (D) x 20.5 (H) |
| Output |
Modbus RS485 Relay (250 VAC / 2A 4 – 20 mA outputs |
| Input voltage |
12 to 30 Vdc ± 0.5 V |
| Working temperature |
– 20 °C to + 60 °C 88 % at 1000 ppm 75 % at 4000 ppm |
| Humidity resistant |
>98 % up to 100 ppm |
| Warranty period |
12 months |
| Dimensions in mm |
Total height including PCB 40 mm |
| Pipe connection |
1/16″ OD barb push fit 1/16″ @ ID / 1/8 @ OD Viton pipe recommended |
| Seal material |
Viton |
| Max gas pressure |
<300 mBar |
Want to learn more?
Complete the form below to speak with a dedicated sensor specialist.
FAQs
Both lamps produce different ionisation energies used to ionise the target gases. Most of the compounds can be ionised using 10.6EV lamp where for the compounds having ionisation energy of more than 10.6 you may need 11.7EV lamp.
High percentage of humidity effects the performance and can result in False results. ION SENSE PIDS are made with patent Fence Electrode Technology which minimises the effect of humidity on the performance of the sensor.
| ION SENSE PIDS are certified to ATEX, IECEX and UL standards. |
