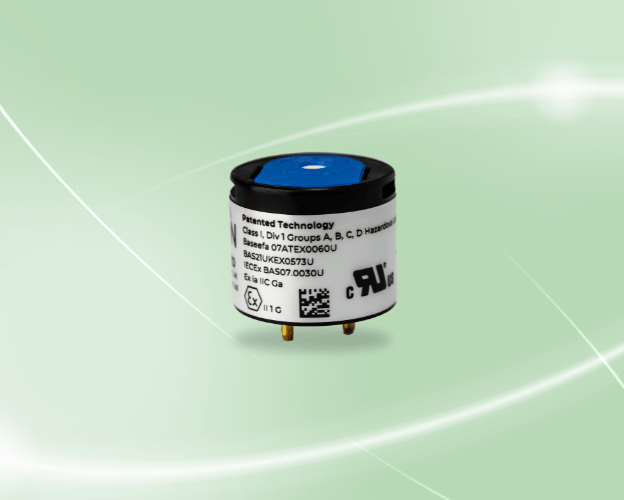

MiniPID 2 PPM WR
OEM gas sensor with state of the art sensing technology.
Our PPM Wide Range Sensor is designed for detecting VOCs over the widest dynamic range on the market without compromising performance. It is also the only PID sensor with a lamp out diagnostic.
The MiniPID 2 PPM Wide Range sensor is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.
The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The MiniPID 2 PPM Wide Range sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.
Key Features
- Humidity-resistance
- 10,000 hours continuous lamp life
- Anti-contamination design
- 10.6 eV lamp
- Removable, pneumatically sealed sensing electrode stack
- Series 4 / A1 size
- 12- month warranty (excluding the electrode stack)
- Expected life > 5 years
- Manufactured in the UK
Why use the PPM Sensor?
Downloads
Technical Specifications

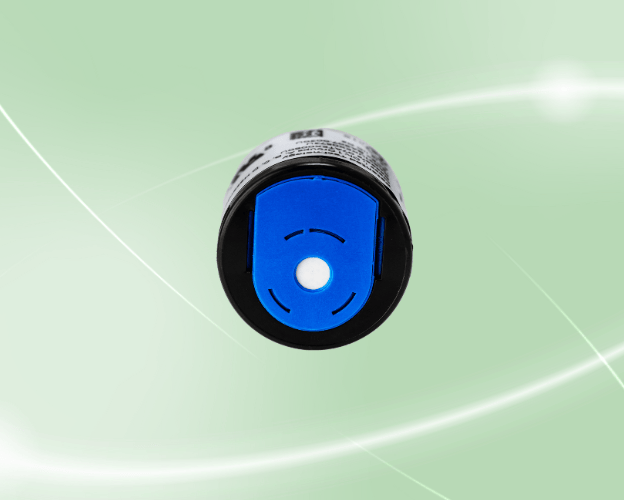

| Electrode Stack Colour | Blue |
| Minimum Detection Limit | 500 ppb |
| Range | >10,000 ppm |
| T90 Response Time (Seconds) |
<3 |
| Sensitivity | >0.4 mV/ppm @ 100 ppm |
| Lamp Energy | 10.6 eV |
| Supply Voltage (using internal regulator) | 3.6 – 18 V (non intrinsically safe 10 – 18 V) |
| Supply Voltage (using a regulated power supply) | 3 – 3.6 V |
| Current |
20 – 32 mA (130 mA for 100 ms at start up) |
| Power Consumption | 100 mW at 3.3 V |
| Output Signal (using internal regulator) | 0 – 3.2 V |
| Output Signal (using a regulated power supply) | 0 to rail voltage – 0.1 V |
| Temperature Range | -40 to 65 °C |
| Relative Humidity Range | 0 – 99% RH, non-condensing |
| Expected Life | >5 years |
| Lamp Life | 10.6 eV 10,000 Hours |
| Warranty |
10.6 eV lamp and MiniPID Body –12 months 11.7 eV lamp – 3 months |
Approvals
|
Europe Certification |
ATEX |
| North America Certification | UL |
| Worldwide Certification | IECEx |
| Patents | US 7,046,012 EC 1474681 |
| Eurasian Customs Union | No EA∋C RU C-GB.HA65.B.00635/20 |
Product Compare
Want to learn more?
Complete the form below to speak to a dedicated sensor specialist.
FAQs
High percentage of humidity effects the performance and can result in False results. ION SENSE PIDS are made with patent Fence Electrode Technology which minimises the effect of humidity on the performance of the sensor.
ION SENSE PIDS are certified to ATEX, IECEX and UL standards.
| Please share serial number with the team and they will revert with the information. |
